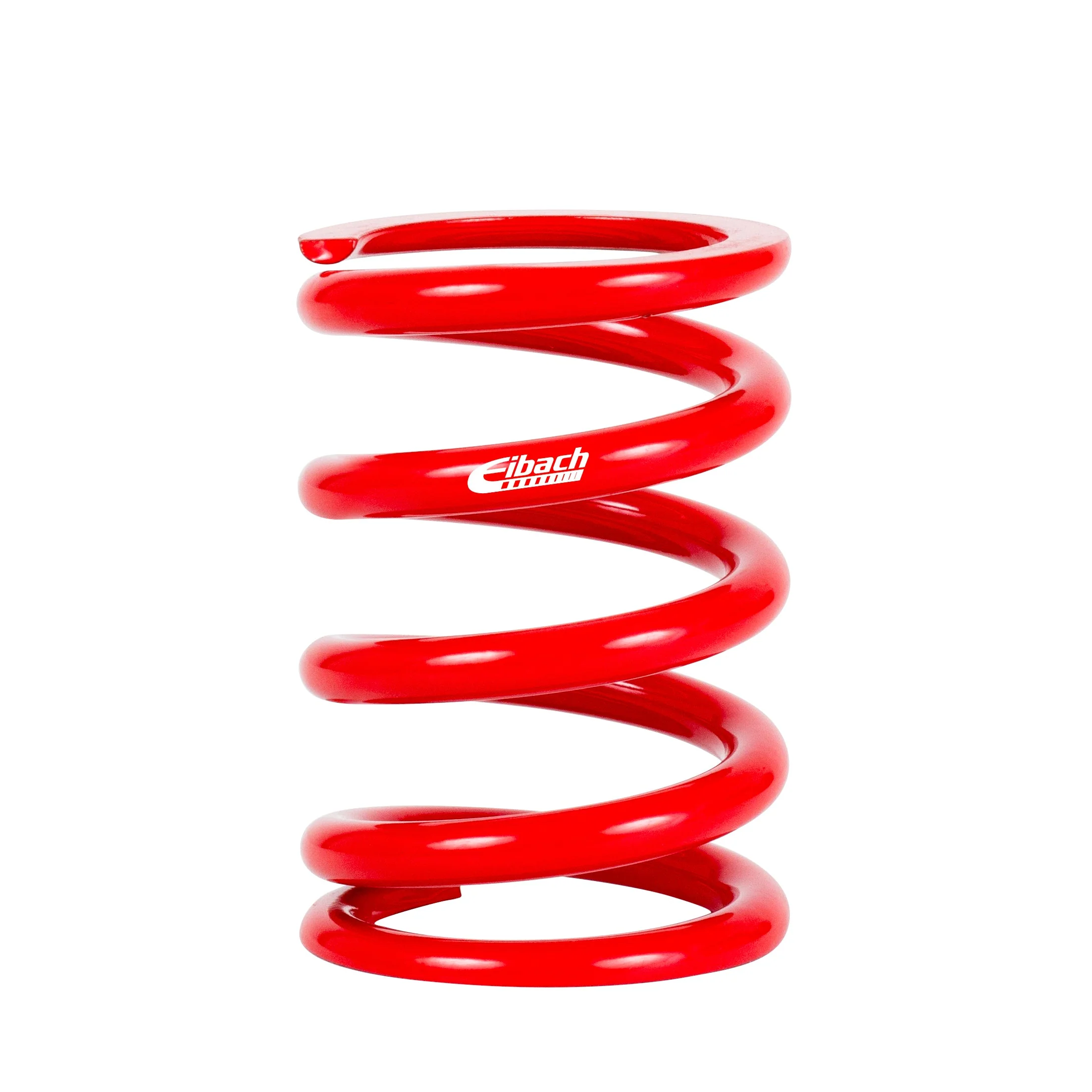

Eibach ESR (0675.500.1000) 675 Length 5.0" ID 1000 lbs Rate

Part Number= 0675.500.1000

PG= ESR

Length= 6.75 (inch) / 171 (mm)

Diameter= 5.00 O.D. (inch) / 127 O.D. (mm)500 / 1000 (lbs/inch)

Rate= 8.94 / 17.85 (KG/mm) 88 / 175 (N/mm)

Block Height= 3.66 (inch) / 93

Travel= 3.09 (inch) / 78 (mm)

Block Load= 2711 (lbs) / 12059 (N))

Weight= 6.15 (lbs) / 2.79 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
