$43.40
Original: $124.00

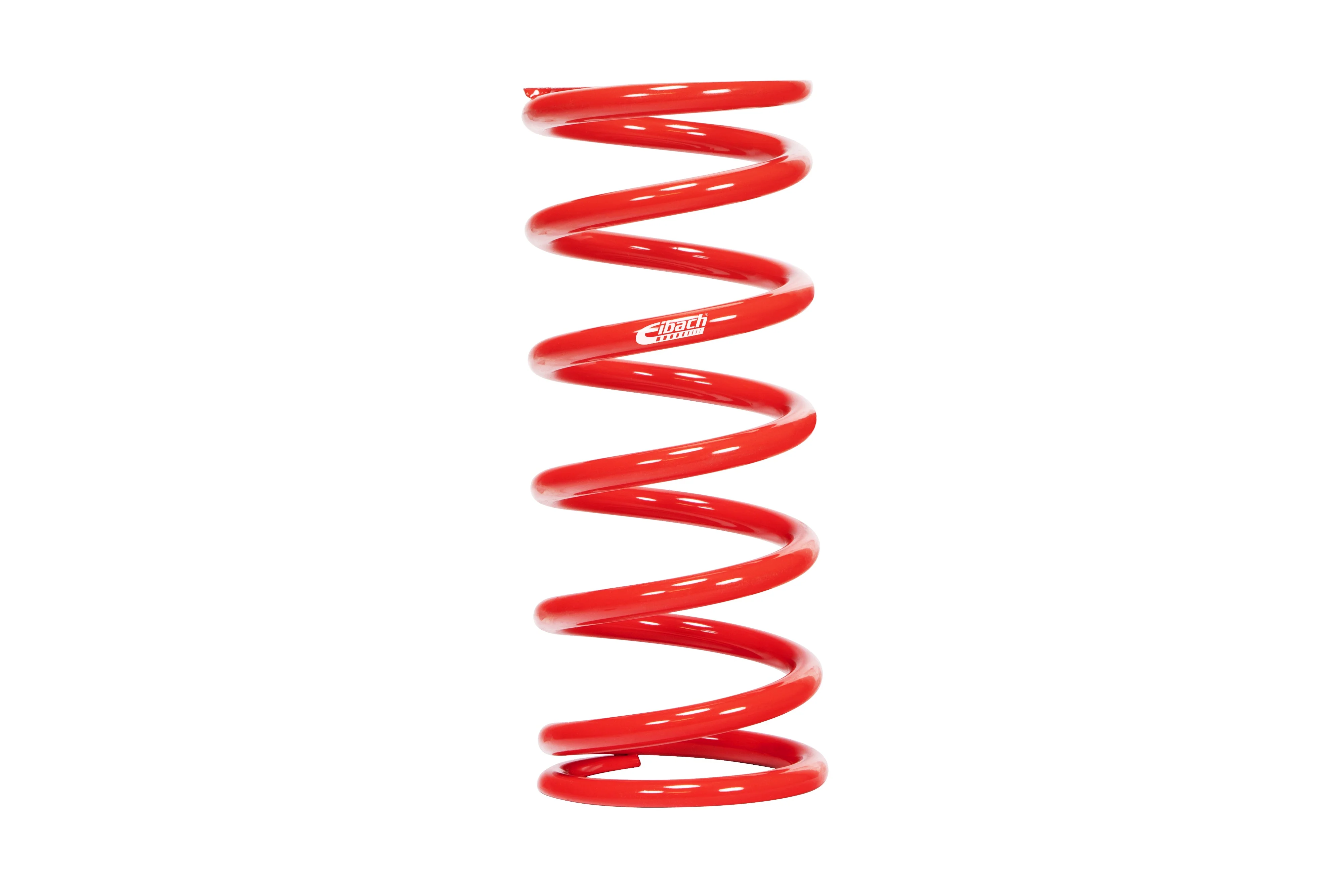

-65%Eibach ERS (1400.250.0110)—
$124.00
$43.40The Story
Part Number= 1400.250.0110
PG= ERS
Length= 14 (inch) / 356 (mm)
Diameter= 2.50 I.D. (inch) / 64 I.D. (mm)110 (lbs/inch)
Rate= 1.96 (KG/mm) 19 (N/mm)
Block Height= 5.03 (inch) / 128
Travel= 8.97 (inch) / 228 (mm)
Block Load= 987 (lbs) / 4390 (N))
Weight= 3.77 (lbs) / 1.71 (KGS)
Eibach Race Spring System
- Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
- Comprehensive Program of single components
- Single Main Springs with highest rate-linearity and lowest rate tolerance
- Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
- Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
- Smallest Solid heights, maximized spring travels and higher maximum loads
- Spring Surface Stabilization through specialized shot peening
- Every ERS Spring preset to block
- Block and Sag Resistant
- Smallest Tolerances and precise plane parallelism of spring ends
- High Dynamic Durability – under Motorsport conditions
- High quality corrosion protection by phosphating and epoxy coating
- Springs Printed with part-number (speaking code = rate and dimensions)
Description
Part Number= 1400.250.0110
PG= ERS
Length= 14 (inch) / 356 (mm)
Diameter= 2.50 I.D. (inch) / 64 I.D. (mm)110 (lbs/inch)
Rate= 1.96 (KG/mm) 19 (N/mm)
Block Height= 5.03 (inch) / 128
Travel= 8.97 (inch) / 228 (mm)
Block Load= 987 (lbs) / 4390 (N))
Weight= 3.77 (lbs) / 1.71 (KGS)
Eibach Race Spring System
- Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
- Comprehensive Program of single components
- Single Main Springs with highest rate-linearity and lowest rate tolerance
- Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
- Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
- Smallest Solid heights, maximized spring travels and higher maximum loads
- Spring Surface Stabilization through specialized shot peening
- Every ERS Spring preset to block
- Block and Sag Resistant
- Smallest Tolerances and precise plane parallelism of spring ends
- High Dynamic Durability – under Motorsport conditions
- High quality corrosion protection by phosphating and epoxy coating
- Springs Printed with part-number (speaking code = rate and dimensions)
